The latest addition to the Hose-McCann family of Interior Communications Systems is the Triton24FG™ alarm and announcing system integrating Public Address, Talkback, General Alarm, and VoIP Telephone. The Triton24FG™ system provides the versatility of solid-state hardware, Internet Protocol (IP) control, configuration, and monitoring with the reliability of 70V audio distribution. The Triton24FG™ system uses IP control to supervise the 70V amplifier/speaker runs eliminating many printed circuit boards used in older systems. Modern, common equipment and reduced spare parts decrease life-cycle costs for owners and operators.The Triton24FG™ system allows ship refits to use existing speaker runs, cabling and speakers from older installations. The main equipment cabinets and controlheads can be upgraded and replaced with current IP technology as desired. The Triton24FG™ system can also be supplied with or integrate with upgraded, replacement Automatic Dial Telephone Systems utilizing VoIP technology. Additional cabinets can be absorbed into a single cabinet design. Triton24FG™ can even supplement the 70V speaker runs with IP addressable speakers and horns from the HMC-ICP™ solution.
Triton24FG™ marries the old to the new in the most affordable and flexible way.

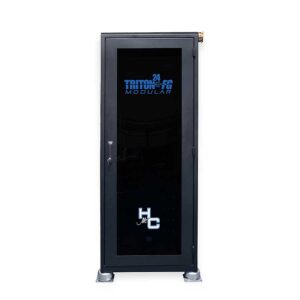

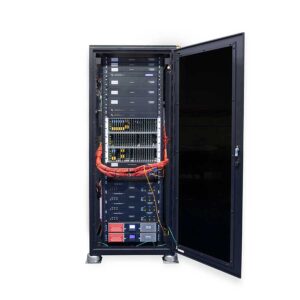

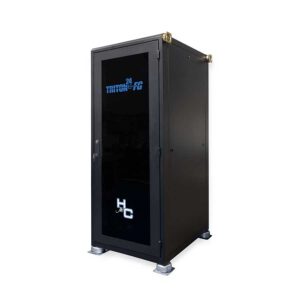

The Triton24FG™ system’s core control rack features:
- Redundant PA/GA IP controllers with unlimited alarm tones and recordable announcements
- Redundant PA/GA amplifier control module with A/B audio input and health monitoring
- Hot Standby Amplifier module, self-healing
- Hot standby amplifier module assumes the load in the event of an individual amplifier failure
- Multiple, configurable standby amplifier modules available
- Speaker Run monitoring / auto-disconnect in the case of open circuits, grounds or shorts
- IP Talkback Module(s) – 3, 6, 9, or 12 station options per 19” rack mount module
- PA Module(s) – 4, 8, 12, or 16 zone options per 19” rack mount module
- Individual Amplifier modules to support each PA Zone in multi-channel system configurations
- Shared load Amplifier modules to support smaller single channel system configurations
- IP-Network Switch sizable to support PA/GA system and optional VoIP requirements
- Redundant power supplies
- Integral or Stand-Alone UPS for a default 30-minute run-time and power conditioning
VoIP Telephone Controller – Option
- Self-contained controller with user Web Portal
- Analog Telephony Interfacing
- Voicemail
- Caller ID
- Call Forwarding
- Alarm Activation Access
- Public Address Paging Access
- Call Routing
- 3-Way Conferencing
- Call Transfer
- Call Park
